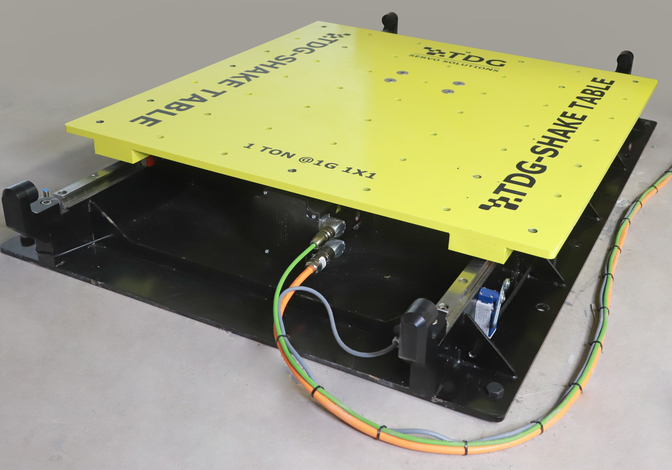

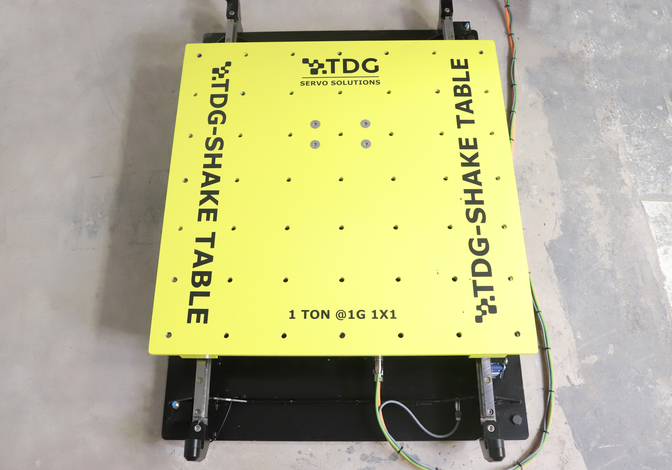

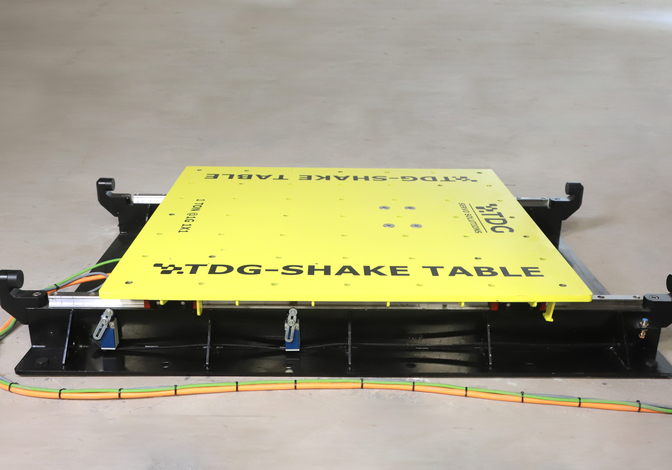

This product is designed for tests requiring a relatively large table size and payloads around 1 ton.
It can replay recorded earthquakes, apply predefined waveforms such as sine, triangle etc. and run any acceleration or displacement-time history provided by the user.
It’s mostly used for small scale structural mechanics, earthquake, soil and geological tests.

System is fully operable through the PC Software.

Besides being cost-effective when compared to hydraulic systems, low power consumption, low maintenance cost and compactness are other advantages.

• 1.5m x 1.5m Top Table
• 1 ton payload (@ ±1 g)
• ±200 mm Stroke
• Closed Loop PID Control
• Precise Control with Servo Motor
• Earthquake Simulation
• Low Power Consumption
• High Industrial Quality, Virtually Maintenance Free

NUMBER OF AXES / CAPACITY / TABLE SIZE / STROKE

Servo-Electro-Mechanical Shake Table solutions can be customized in terms of payload capacity, table size, stroke and number of axes.

COMPLEMENTARY MEASUREMENT SYSTEM

This earthquake simulator is best used with a complementary measurement set, making it possible to measure the reaction of the test model in terms of acceleration and displacement.

(TESTBOX 2010 Digitizer, SENSEBOX ACC-7001/7002 Accelerometer, Displacement Transducer)
