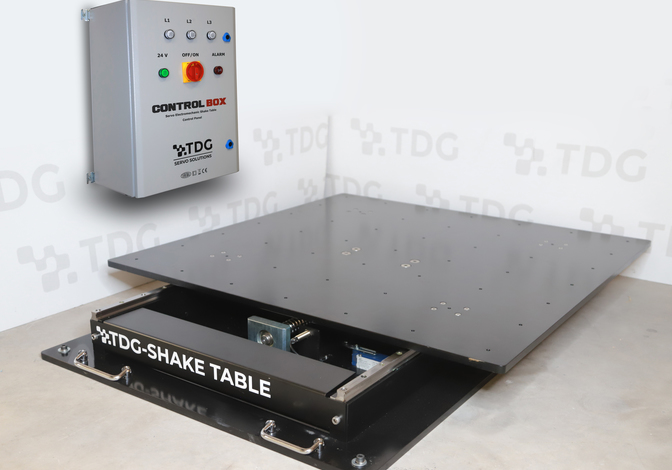

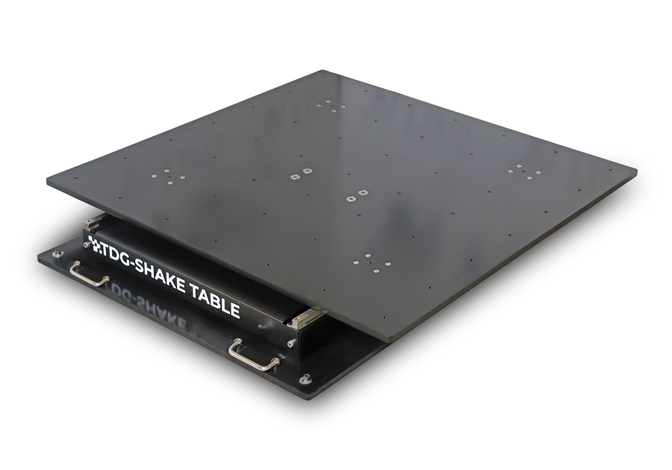

This product is designed for larger scale tests than TDG’s market standard Desktop Shaketable. It can replay recorded earthquakes, apply predefined waveforms such as sine, triangle etc. and run any acceleration or displacement-time history provided by the user.

It’s mostly used for small scale structural mechanics, earthquake, soil and geological tests.

System is fully operable through the PC Software.

• 1m x 1m Top Table
• 250 kg Payload (@ ±1 g)
• ±200 mm Stroke
• Closed Loop PID Control
• Precise Control with Servo Motor
• Earthquake Simulation
• Easy Setup, Plug & Play
• Low Power Consumption
• High Industrial Quality, Virtually Maintenance Free

NUMBER OF AXES / CAPACITY / TABLE SIZE / STROKE

Servo-Electro-Mechanical Shake Table solutions can be customized in terms of payload capacity, table size, stroke and number of axes.

COMPLEMENTARY MEASUREMENT SYSTEM

This earthquake simulator is best used with a complementary measurement set, making it possible to measure the reaction of the test model in terms of acceleration and displacement.

(TESTBOX 2010 Digitizer, SENSEBOX ACC-7001/7002  Accelerometer, Displacement Transducer)
